5 Axis Bridge Cutting Machine with HD Camera & Suction Cup for Granite High-Accuracy Italian Motor 5+3 Axis CNC

Name: 5 Axis Bridge Cutting Machine with HD Camera amp Suction Cup for Granite HighAccuracy Italian Motor 53 Axis CNC
Brand: ZSMART
Price: 22 USD

Buy cheap 5 Axis Bridge Cutting Machine with HD Camera & Suction Cup for Granite High-Accuracy Italian Motor 5+3 Axis CNC product

Color : Black, White, Yellow, Blue, Customizable

Max Cutting Length : Customizable, 3200mm

Type : Stone Cutting Machine

Use : Granite

Place of Origin : SHANDONG,CHINA

Brand Name : ZSMART

Voltage : 380 V, 220 V

Power(W) : 15kw+7.5kw+750w

Dimension(L*W*H) : 5500*3200*3700

Weight : 3400 kg

Warranty : 1 Year

Key Selling Points : High-Accuracy

Cutting thickness (max) : 150mm

Machinery Test Report : Not Available

Video outgoing-inspection : Provided

Core Components : Higher power Italian motor

MOQ : 1

Price : $22,000-23,000 / set

Certification : CE

Packaging Details : OTHERS

Delivery Time : 30DAYS

Payment Terms : T/T

Supply Ability : 1000 SETS ONE YEAR

Contact Now

The five axis bridge cutting machine is a new generation of multifunctional machining machinery that adopts graphic operation and advanced technology. The synchronous CNC control system makes machine operation simple and free, without the need for complex CNC knowledge. This machine can be used to achieve advanced functions such as horizontal and vertical cutting, irregular cutting, contour cutting, drilling, 360 degree free rotation of the machine head, 90 degree chamfering, and 85 degree desktop lifting. It is equipped with high-definition cameras and two vacuum suction cups, and can be used inlarge stone processing plants and countertop workshops.

Characteristic:

Independently developed operating system, fully CNC operation, graphic layout.
Integrated workbench for easy loading and unloading of boards.
The automatic pressure plate firmly fixes the board.
The lifting function makes the board easy to move.
The frame is sturdy and durable, without deformation.
Suction cup vacuum moving system is more convenient.
High definition camera function makes observation more convenient.
Can be installed together with saw blades, drill bits, and drilling machines.
High speed precision host
Supports 0-85 degree flipping, 0-90 degree chamfering, 360 degree free rotationof themachinehead, horizontal and vertical cutting, irregular cutting, contour cutting, and drilling functions.
Independent milling spindle

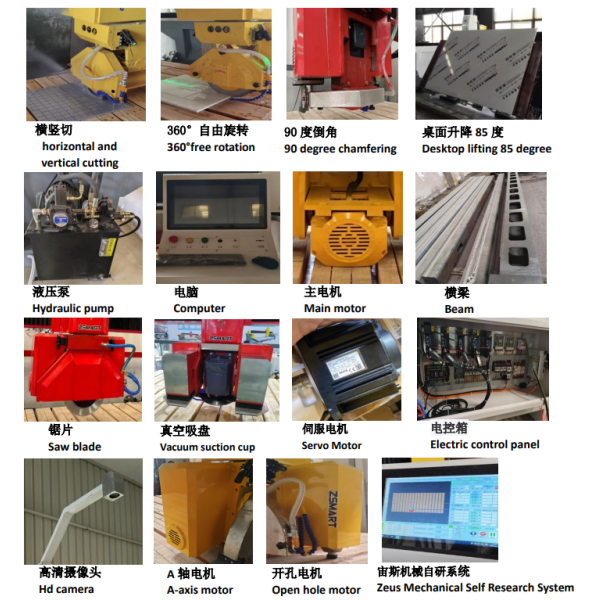

5 Axis Bridge Cutting Machine with HD Camera & Suction Cup for Granite High-Accuracy Italian Motor 5+3 Axis CNC Images
